TREVOLI - SV-750A-3 Cast Iron Vortex Submersible Dirty water / Sewage Pump-Three Phase
TREVOLI SV-750A-3 Cast Iron Submersible Dirty Water/Sewage-Three Phase
Pump
Suitable for use as an Effluent Pump, Dirty Water Pump, Drainage Pump, Septic and Aerated sewage treatment Pump, Grey Water Pump and Irrigation Pump
Specifications:
*Power: 750 Watt (1 HP) three phase
*2.1 amp
*Flow rate: 430 L/min
*Max delivery height: 11 metres
*Max immersion depth: 8 metres
*Weight: 18 kg
*Outlet size: 80mm

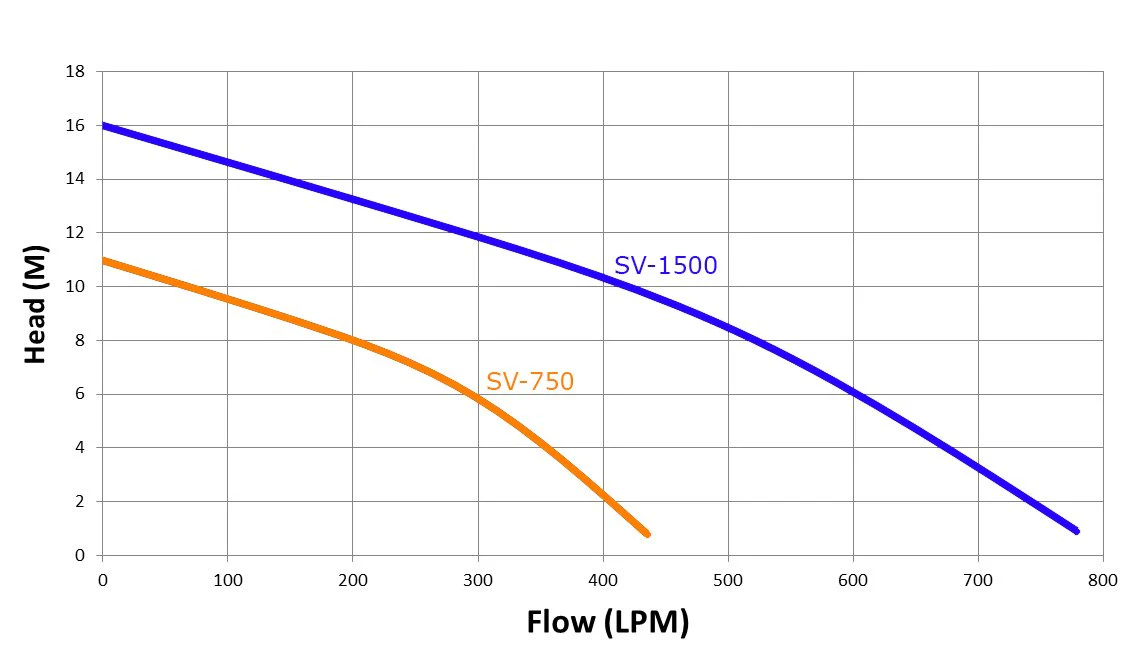

Head (metres) / Flow (LPM)
| Head | 1.5m | 3m | 4.5m | 6m |
| Flow Rate | 420LPM | 395LPM | 315LPM | 295LPM |
Features:
*Easy to use
*Non clogging Vortex impellor design
*Rated for continuous use
*Can process long fibres and solids up to 37mm
*Has a float switch for run-dry protection
*Motor has built in auto-reset thermal overload protection

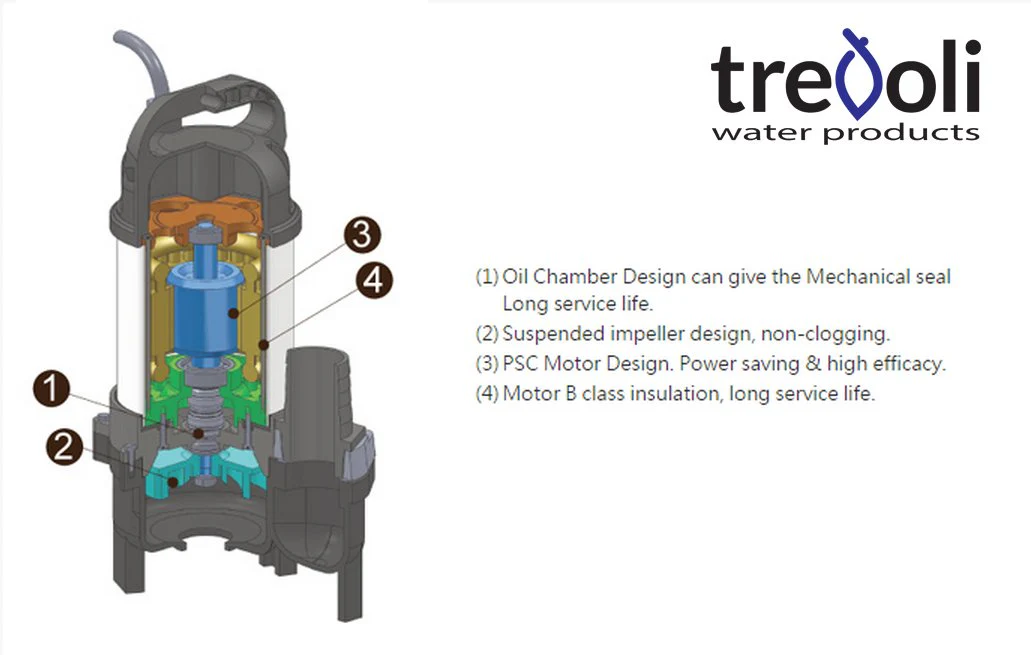

*Double mechanical seals with oil chamber and lip seal for added protection
*10 Metre R05RNF neoprene chemical and oil resistant electrical cable.
*Comes with 80mm outlet hose fitting (removable)
*Solid Cast Iron pump body and impeller for durability
Limitations
*The maximum depth it is allowed in water is 8m from its centre of impeller
*Liquid to be pumped should have a PH: 6-8
Common Applications: Effluent pump, Drainage pump, Dirty water pump.
SV Series Brochure
TWO YEAR WARRANTY
Description
TREVOLI SV-750A-3 Cast Iron Submersible Dirty Water/Sewage-Three Phase
Pump
Suitable for use as an Effluent Pump, Dirty Water Pump, Drainage Pump, Septic and Aerated sewage treatment Pump, Grey Water Pump and Irrigation Pump
Specifications:
*Power: 750 Watt (1 HP) three phase
*2.1 amp
*Flow rate: 430 L/min
*Max delivery height: 11 metres
*Max immersion depth: 8 metres
*Weight: 18 kg
*Outlet size: 80mm
Head (metres) / Flow (LPM)
| Head | 1.5m | 3m | 4.5m | 6m |
| Flow Rate | 420LPM | 395LPM | 315LPM | 295LPM |
Features:
*Easy to use
*Non clogging Vortex impellor design
*Rated for continuous use
*Can process long fibres and solids up to 37mm
*Has a float switch for run-dry protection
*Motor has built in auto-reset thermal overload protection
*Double mechanical seals with oil chamber and lip seal for added protection
*10 Metre R05RNF neoprene chemical and oil resistant electrical cable.
*Comes with 80mm outlet hose fitting (removable)
*Solid Cast Iron pump body and impeller for durability
Limitations
*The maximum depth it is allowed in water is 8m from its centre of impeller
*Liquid to be pumped should have a PH: 6-8
Common Applications: Effluent pump, Drainage pump, Dirty water pump.
TWO YEAR WARRANTY
