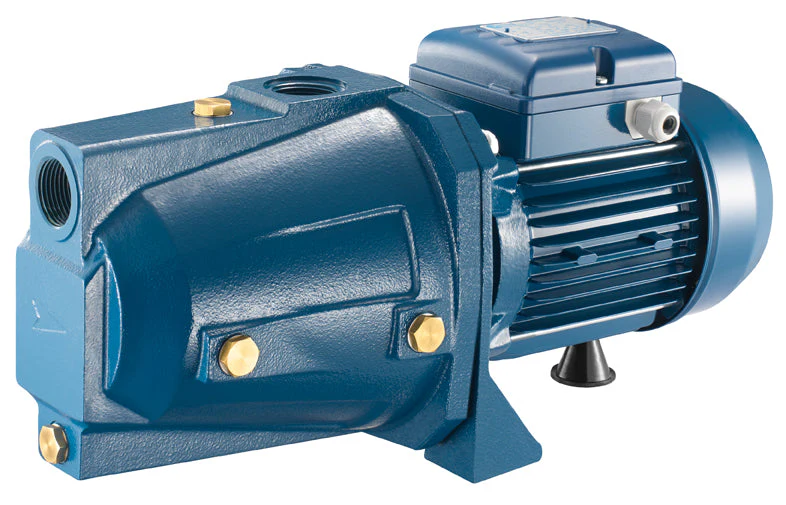

Pentax CAM Series 150 & 200 Models - Cast Iron Jet Pumps

CAM 150/01, CAM 200/0

The Pentax CAM Series are self-priming centrifugal Jet Pumps available in four models.  Ideal for house or farm water supply and transfer, the Jet/Venturi design provides the pump with the ability to lift water 8 meters below from the water source. Other Applications include drawing water from rivers, ponds, wells, bores and underground tanks. The Cam series are a heavy duty and robust pump.

Specifications:

Model	Flow (LPM)	Head (M)	KW	HP	Amps	Phase
CAM 150/01	120	51	1.5	2.0	8.5	Single
CAM 200/01	120	58	1.85	2.5	10.4	Single

* Inlet 40mm/Outlet 32mm
* Single phase voltage range: 220-240V PSC
* Insulation: Class F
* Protection: IP44
* Rating: Continuous

Features:

* Suction Lift - 8 Metres
* Heavy Duty Build
* Cast Iron Body & Motor Bracket
* Ceramic Mechanical Seal
* Stainless Steel Shaft
* Built in thermal overload protection

Operation limitations:

* Liquid temperature range: 0ºc to +50ºc
* Maximum operating pressure: 8bar/116PSI

Applications:

* Suitable for Large Homes
* Farm supply
* Water transfer
* Drawing water from rivers, ponds, wells, bores and underground tanks

2 Year Warranty
