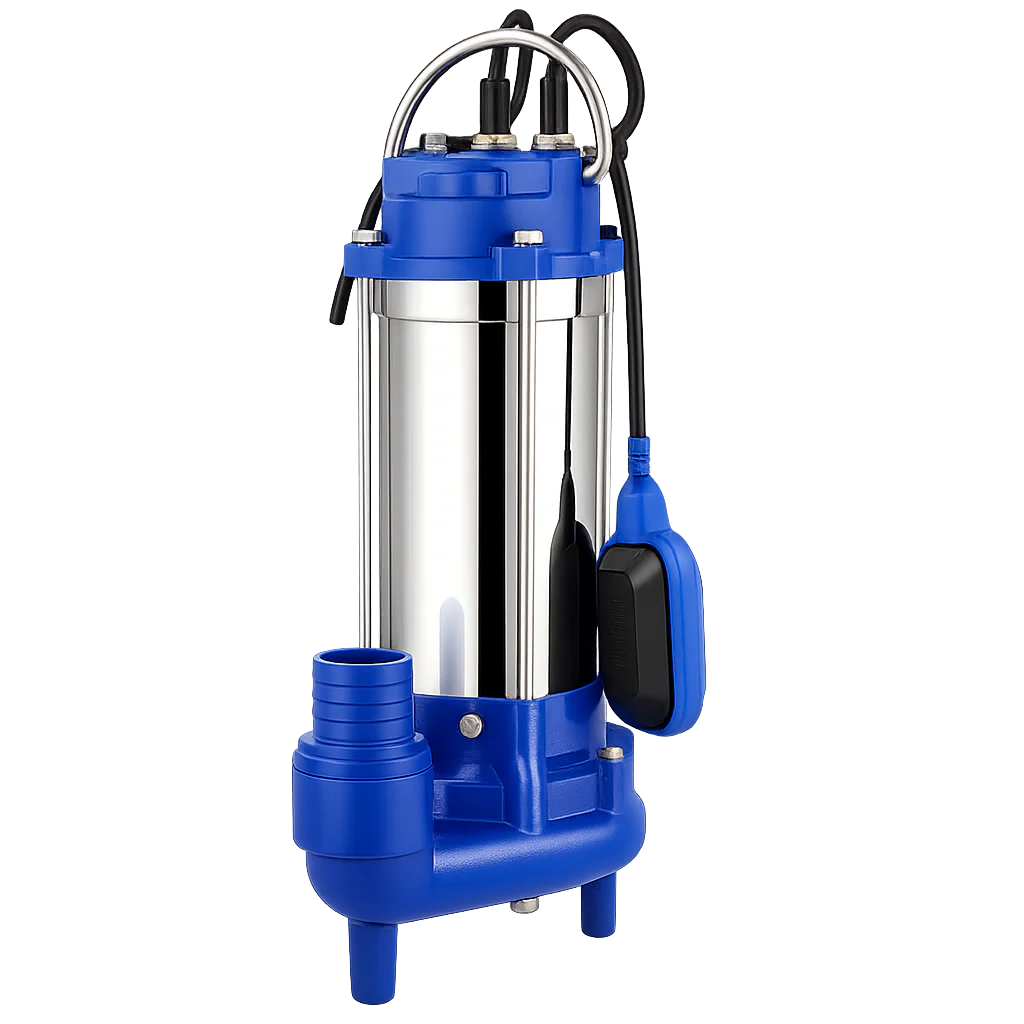

Trevoli - CX150 Cutter Submersible Pump

CX150

The Trevoli CX150 cutter submersible pump is engineered for demanding sewage, wastewater and drainage applications where reliability and performance are critical. Built with a robust cutting mechanism, it effectively macerates solids and fibrous materials, ensuring smooth, continuous operation.

A high head, high flow rate solution, this pump delivers powerful performance across a wide range of environments, making it ideal for both household as well as light commercial and light industrial use. Its heavy-duty construction and high-quality components ensure long service life, even in harsh operating conditions.

Specifications:

* Max Flow: 350lpm
* Rated Flow: 117lpm
* Max Head: 20.6m
* Power: 1.5kW/2 HP
* Voltage: 220v
* Single Phase
* Max Solid Diameter: 15mm
* Outlet: 2"/50mm
* Amps: 9.6a

Technical Features:

* Max immersion depth: 5m
* PH Value: 4-10
* Max Liquid Temperature: 40 degrees
* Insulation Class: F
* IP68
* 50Hz

Motor Features:

* 10m Cable, 3 Pin Plug
* Float Switch
* Body: S/steel
* Cast Iron Volute
* Impeller: Cast Iron

Applications:

* Sewage
* Effluent
* Dirty Water
* Septic and Aerated sewage treatment
* Waste Water

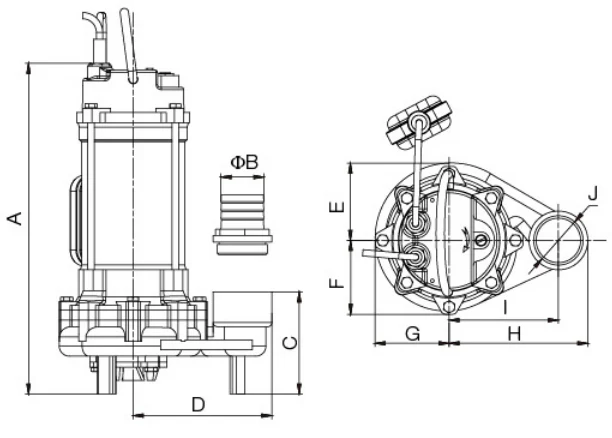

Dimensions:

A	B	C	D	E	F	G	H	I	J
445mm	51mm	121.5mm	165mm	92mm	88mm	88mm	165mm	130mm	G2



Parts List

2 Year Back to Base Warranty
