Trevoli 1200L Sewage Pump Station Kit
Trevoli 1200L Sewage Pump Station Kit
SPS-1200-(X)
The Trevoli sewage pump station kit is a great solution when needing to transport sewage up and away from its current location. This sewage kit offers an "all-in-one" sewage tank solution with benefits such as:
*An audible alarm that alerts if the sewage tank is close to capacity
*A pump that activates at an adjustable height with the use a of a float switch
*A prefabricated, Polyethylene tank made from top quality material for rust free, discreet underground secure storage of waste
Specifications:
*Size: 1200L
*Dimensions: 1670mm (h) x 1155mm (w) (spherical design)
*Weight: 58KG
*Made of Polyethylene
*Certified to product standard AS/NZS 1546.1:2008
Features:
The Trevoli 1200L sewage pump station can come with the following options:
*Trevoli 1200L sewage tank

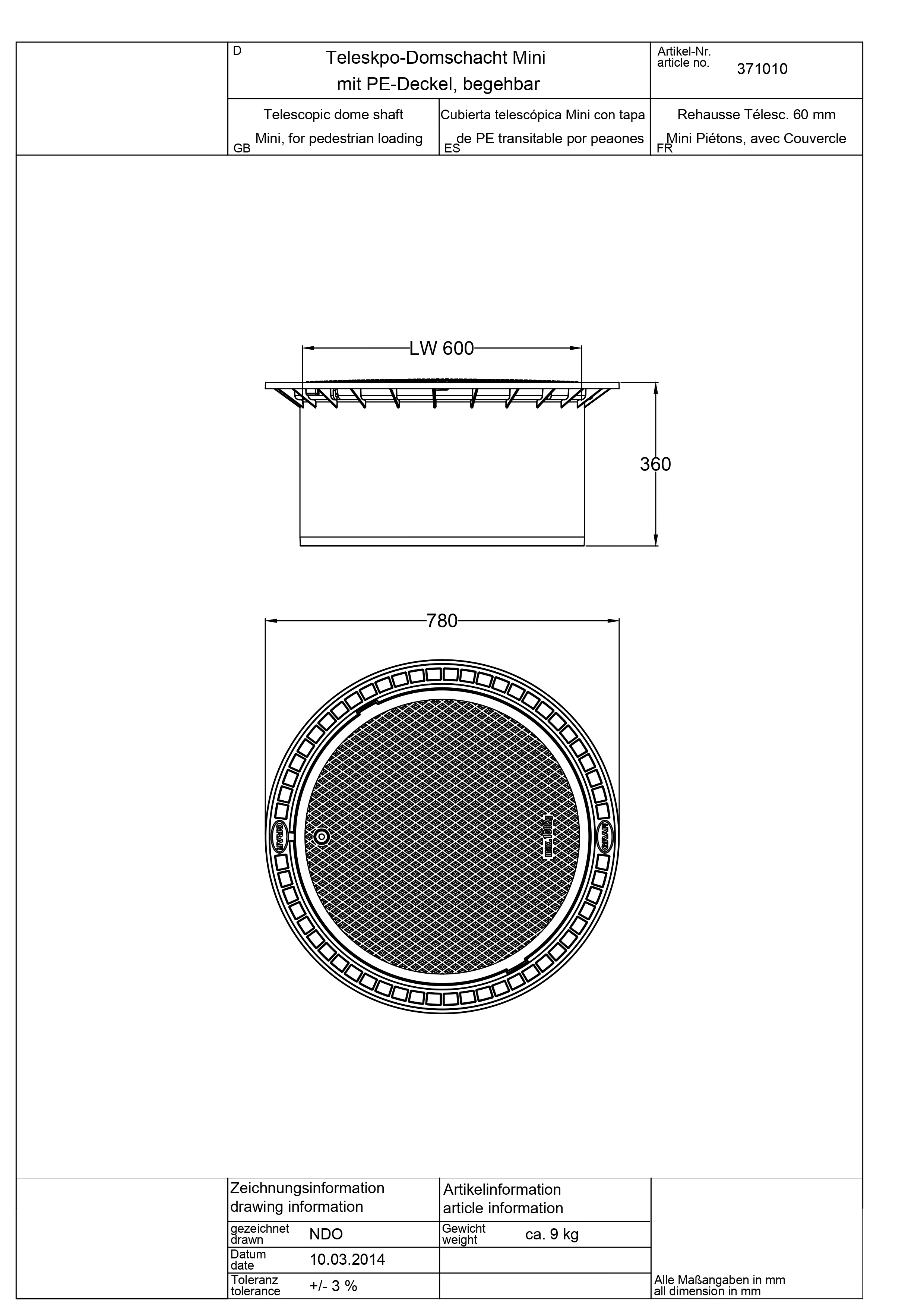

*Trevoli Pedestrian tank lid OR Trevoil Vehicle tank lid

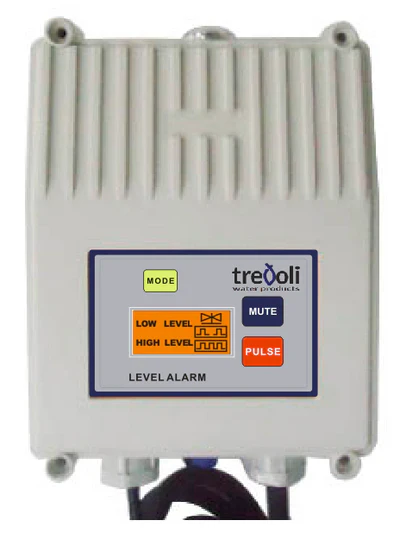

*Bianco I ALARM monitoring system

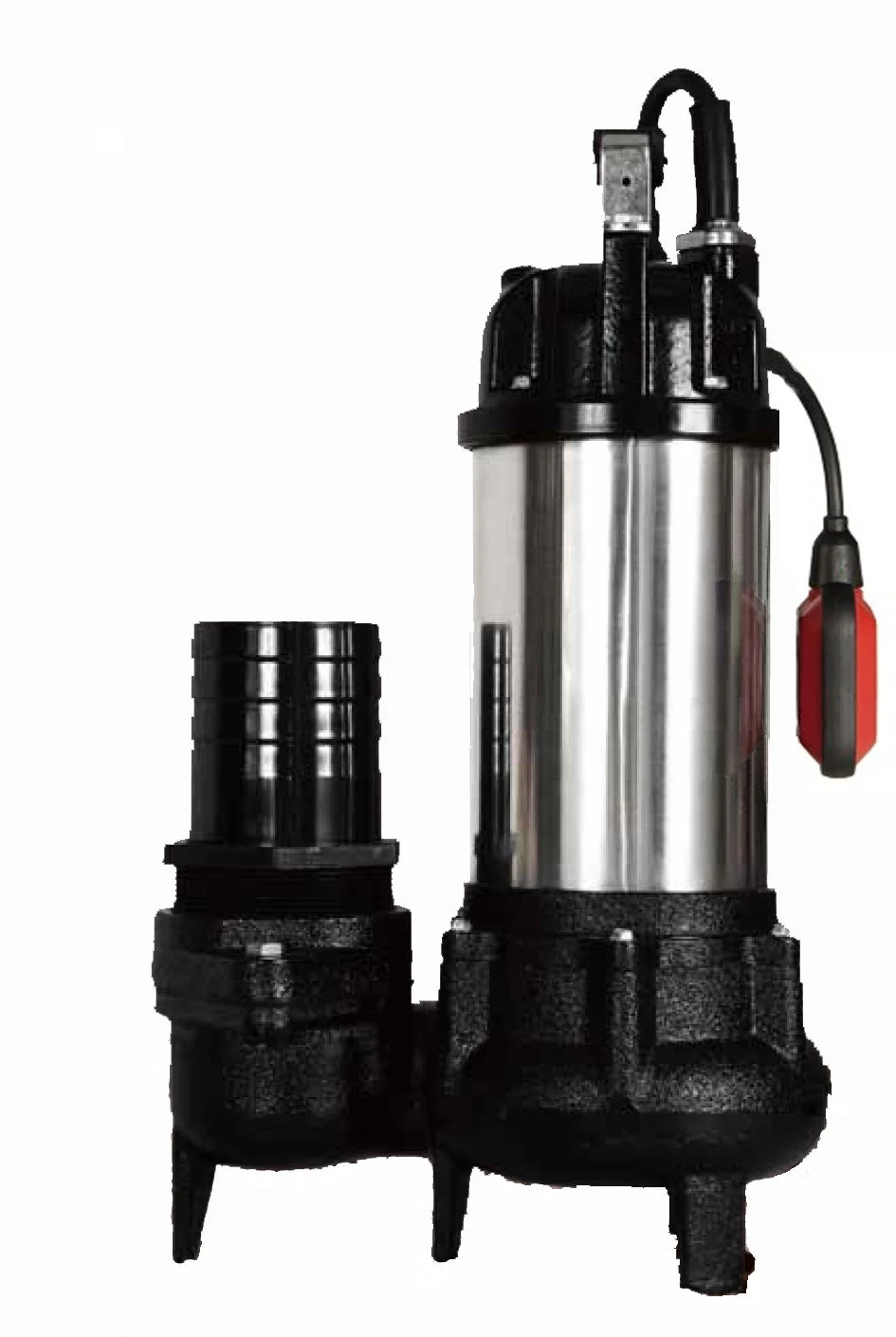

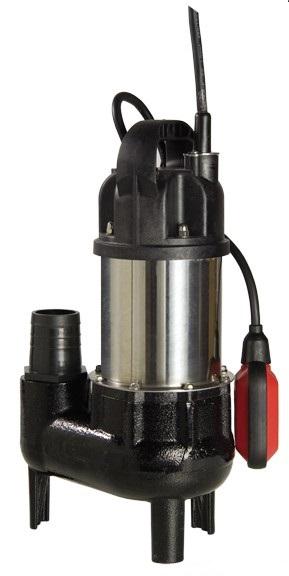

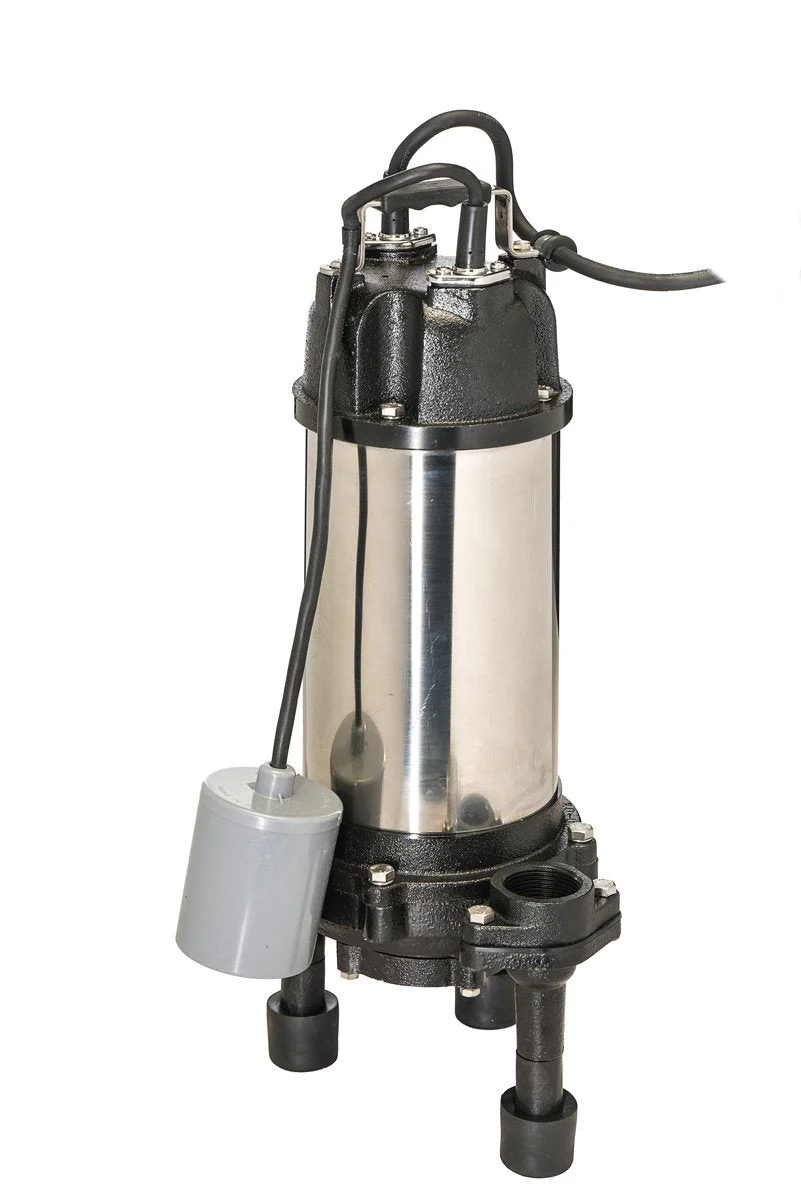

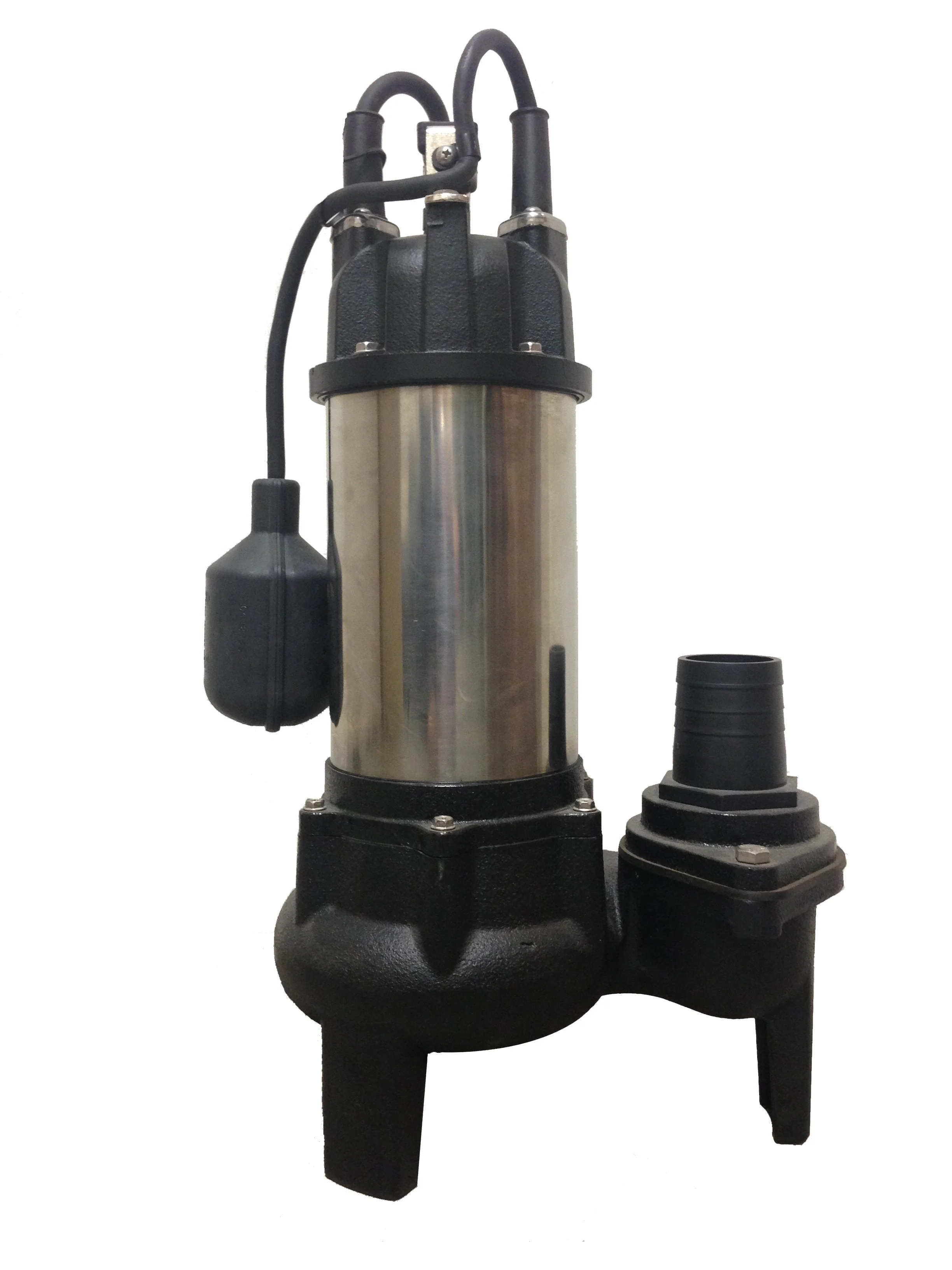

*Choice of 1 of the following Trevoli pumps:
| Model | Watts | HP | Max Flow Rate (lpm) | Max Head (m) | Outlet (mm) |
| Vortex | |||||
| Trevoli BCV-400A | 400 | .5 | 300 | 8 | 50 |
| Trevoli BCV-750A | 750 | 1 | 500 | 10 | 50 |
| Trevoli SV-1500A | 1500 | 2 | 760 | 16 | 80 |
| Grinder/Cutter | |||||
| Pentax DTR101 | 1200 | 1 | 220 | 17 | 40 |
| Trevoli GDH-20A | 1500 | 2 | 175 | 30 | 32 |
| Trevoli GC-10A | 750 | 1 | 160 | 15 | 32 |
| Trevoli GC-07A | 55 | .7 | 140 | 10 | 32 |
| Pentax DTR Series | 1500/2200 | 2/3 | 300 | 22/26 | 50 |
Additional (Please see selection menu):
1200L Sewage Pump Station Fitting Kit (SPS-1200-FitKit)
This kit includes all the appropriate PVC pipe length, discharge manifold, check valve, elbows and fittings for the 1200L Sewage Pump Station.
Please contact us for freight options
Applications:
*Whole house sewage application
*Used in situations where waste collection is beneath council pipelines
NOTE: Sanitary products and wipes should not be used with these pump stations. Use of such products could void warranty.
NOTE: Please get in touch with us if you have unique pumping requirements, we are happy to specify alternative pumps and accessories.
Warranty
Tank: 15 Years
Vehicle Lid: 2 Years
Pumps: 2 Years Back to Base
MP-S1: 1 Year
Level Alarm: 1 Year
Resource Material:
Tank Water Volume Measurements
Original: $1,619.37
-65%$1,619.37
$566.78
