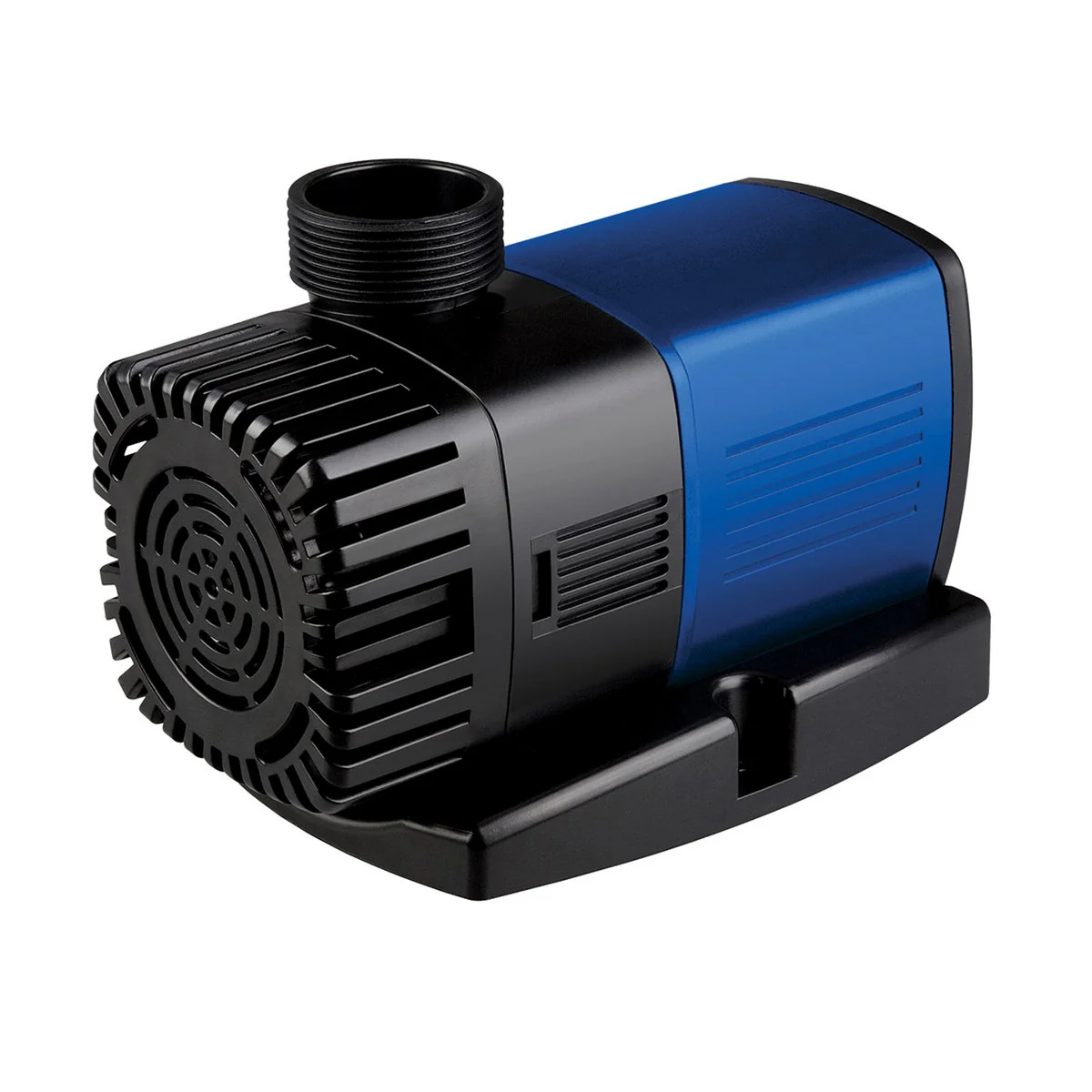

PondMAX EVO II Series Pond Pumps

The PondMAX EVO II range are a revolutionary new range of water pumps. The PondMAX Evo II Submersible Pumps have been manufactured with advanced technology to provide you with the best quality pump for your pond or water feature. The PondMAX pumps are suitable for use in many different applications, including fountains, water features, aquatic systems, aquarium applications and hydroponics.

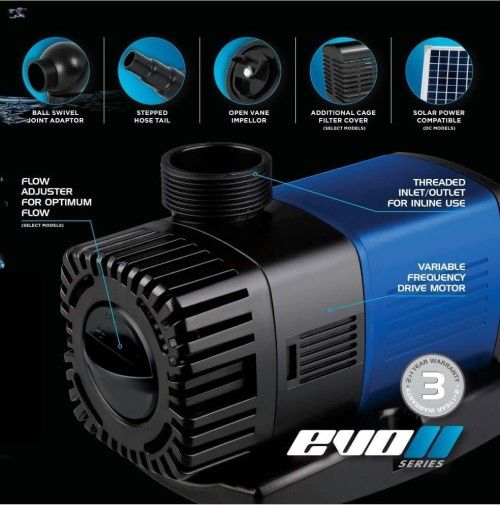

• High performance with very low power consumption
• Variable frequency motor design
• Anti burnout (Run Dry Protection) and soft start technology
• Tool-Less Assembly for easy maintenance
• Marine and freshwater compatible
• Threaded intake to adapt optional sponge pre-filter.

Models EV1900, EV2900, EV3900 & EV4900 come included with a range of adaptors and fountain kit. These models also include an adjustable flow dial on the front of pump. 7200, 9200, 11200 & 13600 models do not offer this feature and doe not include the fountain kit.

Specifications:

Model	Head	Flow Rate	Wattage	Inlet/Outlet	Voltage
EV1900	2.4m	30LPM (1800 LPH)	12w	25mm	230v
EV2900	3.4m	50LPM (3000 LPH)	20w	25mm	230v
EV3900	3.8m	66LPM (4000 LPH)	27w	25mm	230v
EV4900	5.0m	76LPM (4900 LPH)	45w	25mm	230v
EV7200	5.5m	120LPM (7200LPH)	85w	40mm	230v
EV9200	6.0m	155LPM (9300 LPH)	105w	40mm	230v
EV11200	6.5m	186LPM (11200LPH)	100w	40mm	230v
EV13600	7.0m	226LPM (13600LPH)	160w	40mm	230v

Head vs Flow per hour:

Features:

* Cable length – 10m
* Fountain Kit included
* Adjustable Flow Rate
* Can be submersed or used inline (not self priming)
* Magnetically driven centrifugal pump
* Rated for continuous use, 24/7 operation
* IP Rating: IPX8
* 50Hz
* Pumps can lay on their side

Model	Dimensions (L x W x H) mm
1200	150 x 74 x 84
1600	170 x 80 x 84
2800	210 x 98 x 110
1900	180 x 120 x 110
1900LV	180 x 75 x 90
2900	225 x 95 x 75
2910LV	185 x 115 x 100
3900	225 x 95 x 75
3900LV	180 x 75 x 90
4900	182 x 115 x 110
4900LV	182 x 115 x 110
7200	190 x 124 x 137
9200	228 x 142 x 148
11200	228 x 142 148
13600	228 x 142 x 148

Applications:

* Fresh water use
* Aquariums
* Fountains
* Ponds
* Hydroponics
* Irrigation.

Pondmax Anti Burn Technology is an innovative feature designed to protect pond pumps from damage when they are running without water, also Known as ‘Dry running’. This technology is particularly used for preventing pump failures.

Key features of PondMax Anti Burn out technology



1. Automatic shut off:
   The technology Automatically shuts off the pump if it detects a lack of water, preventing the motor from over heating and burning out.

2. Dry Run Protection:
   If the pump is running dry ( I.e. without sufficient water) the anti-burn out technology will stop the pump to avoid damage. This is crucial in scenarios where the water level in the pond drops to low, or if there is a blockage preventing water from reaching the pump.

3. Restart Functionality
   Some Pondmax pumps have the ability to restart themselves when they detect new water flow has been restored. This ensure that the pump can continue to function without manual intervention once the water level is back to normal.

4. Enhanced pump longevity
   By preventing the pump from running under harmful conditions these features significantly increase the lifespan of the pump, reducing the need for frequent replacements or repairs.



2 Year Back to Base Warranty

Instruction Manual
