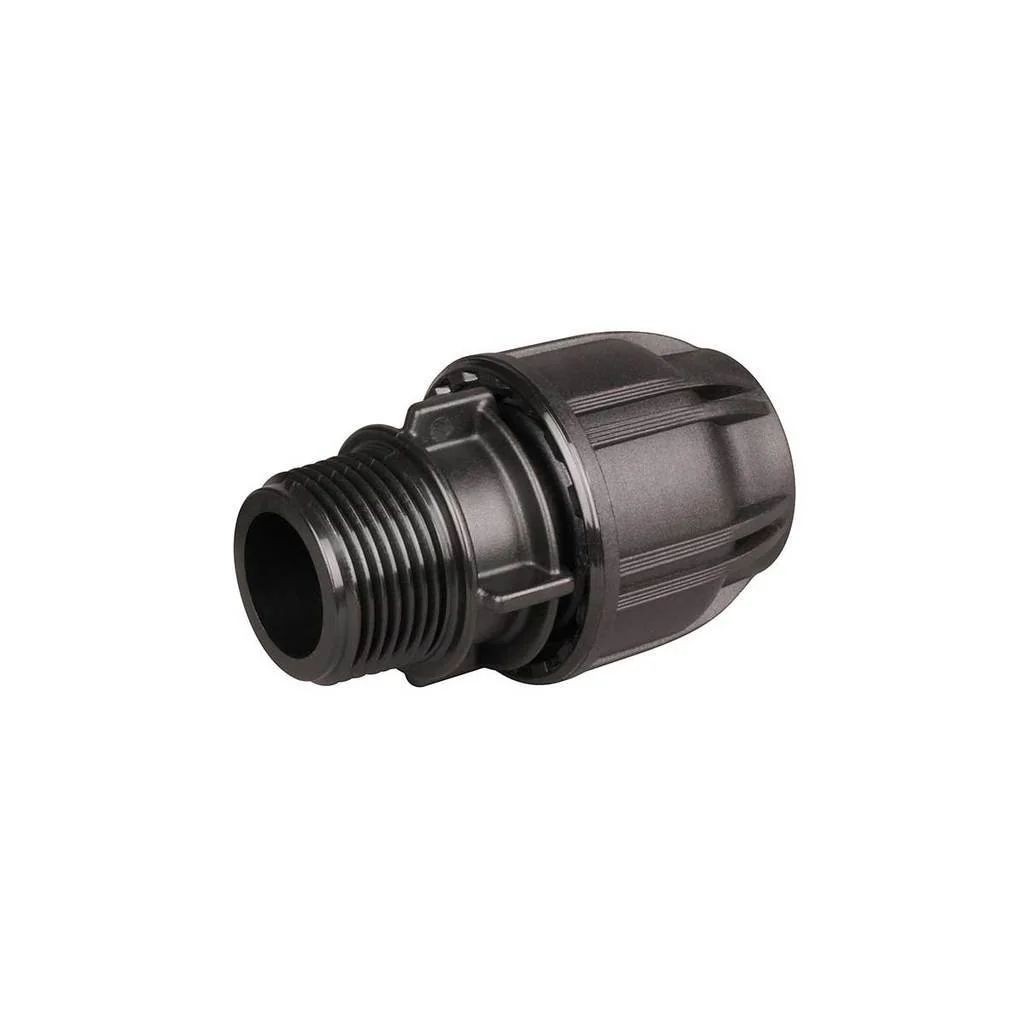

Hansen Compression Male Straight Coupling
Hansen Compression Male Threaded Straight Coupling
Easy Fit Medium Density Compression Fittings
Used for connection medium density polyethylene pipe (MDPE) to female threads
Metric Size x Metric Size
| Fitting | Code | Metric |
| 16mm X 15mm MD Male Coupling | HMDMC1615 | 16mm x 1/2" |
| 16mm X 20mm MD Male Coupling | HMDMC1620 | 16mm x 3/4" |
| 20mm X 15mm MD Male Coupling | HMDMC2015 | 20mm x 1/2" |
| 20mm X 20mm MD Male Coupling | HMDMC2020 | 20mm x 3/4" |
| 25mm X 15mm MD Male Coupling | HMDMC2515 | 5mm x 1/2" |
| 25mm X 20mm MD Male Coupling | HMDMC2520 | 25mm x 3/4" |
| 25mm X 25mm MD Male Coupling | HMDMC2525 | 25mm x 1" |
| 32mm X 15mm MD Male Coupling | HMDMC3215 | 32mm x 1/2" |
| 32mm X 20mm MD Male Coupling | HMDMC3220 | 32mm x 3/4" |
| 32mm X 25mm MD Male Coupling | HMDMC3225 | 32mm x 1" |
| 20mm X 15mm MD Male Coupling | HMDMC3240 | 32mm x 1 1/2" |
| 40mm X 25mm MD Male Coupling | HMDMC4025 | 40mm x 1" |
| 40mm X 32mm MD Male Coupling | HMDMC4032 | 40mm x 1 1/4" |
| 40mm X 40mm MD Male Coupling | HMDMC4040 | 40mm x 1 1/2" |
| 50mm X 32mm MD Male Coupling | HMDMC5032 | 50mm x 1 1/4" |
| 50mm X 40mm MD Male Coupling | HMDMC5040 | 50mm x 1 1/2" |
| 50mm X 50mm MD Male Coupling | HMDMC5050 | 50mm x 2" |
* We can supply fittings up to 110mm-4" Please Enquire
Features
* Manufactured in NZ using the best materials to withstand the harshest conditions
* Proven O-Ring seal for reliable leak free connections
* Potable (Drinking) water compatible
* Easy Grip Nuts for rapid winding onto pipe
* Sleek, Compact Design for easy installation
* Dependable High Quality Threaded components
Medium Density Fittings
Used for:
* Medium Density Pipe
* Blueline pipe (available in our hose section)
Tips:
* Medium-density pipe is referred to by its outside diameter (OD)
* Medium Density Fittings go overtop of MD Pipe
* The pipe needs to be pushed past the O-ring in the MD fitting to seal
* Use tools to tighten
* If the MD pipe is scratched or gouged, it may not create a seal on the O-ring and leak.
Hansen Easy Fit Compression Fittings Brochure
