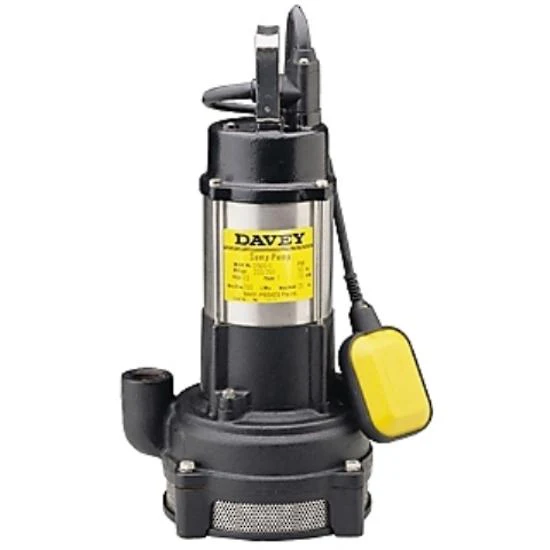

Davey High Pressure Submersible Pump- D42 Series

The Davey D42 Series Submersible sump pump with twin impeller design for higher pressure and up to 32m head.

Specifications:

* Power: 600 Watt
* Max Flow rate: 130LPM
* 1 inch BSP (25mm) outlet
* Max delivery height: 32 metres
* Max immersion depth: 12 metres
* Max Motor speed: 2850 rpm
* Single Phase
* IP Rating-X8
* Insulation class:F
* Power 220-240V with standard 3 pin plug and 10 meter cable
* Foreign body size: Up to 1.9 mm

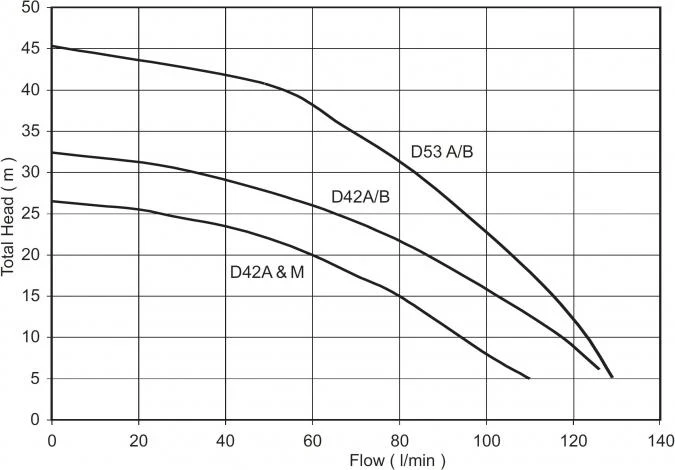

* Flow at 15 metres approx 105 Lpm
* Flow at 25 metres approx 65 Lpm

Features:

* Easy to use
* Float switch for run-dry protection
* 10 Metre electrical cord
* Thermal overload protection.
* Double mechanical seal (in oil bath on motor and on pump)
* Corrosion resistant 304 stainless steel shaft, motor shell and fasteners(D42A/B has cast 316 stainless steel motor caps and super tough engineered thermo plastic pump casing)
* Multistage twin impeller design
* Corrosion resistant stainless steel fine mesh suction strainer with large surface area
* In-built automatic thermal overload

Applications:

* Lawn & garden irrigation
* Sump emptying to higher heads
* Treated effluent disposal
* Water transfer from wells
* Model D42A/B specially designed for non potable rainwater applications
* Clean water of neutral PH containing up to 1% solids

“A” suffix models equipped with present length automatic float switch fitted for automatic operation

2 Year Back to Base Warranty
DataSheet
