TREVOLI BAH-750A Submersible Pump

TREVOLI BAH-750A Submersible Pump

BAH-750A Submersible Pump

The Trevoli BAH is a heavy duty, cast iron/stainless steel submersible pump ideal for high head water transfer, pumping clean and dirty water. Robust, reliable and high quality.

Specifications:

* 230 Volts
* Single Phase
* 0.75kW/1.0HP
* Max Flow Rate: 220LPM
* Max Head: 25m
* Comes with Float Switch
* Outlet Size: 50mm
* Particle Size:  8mm

Features:

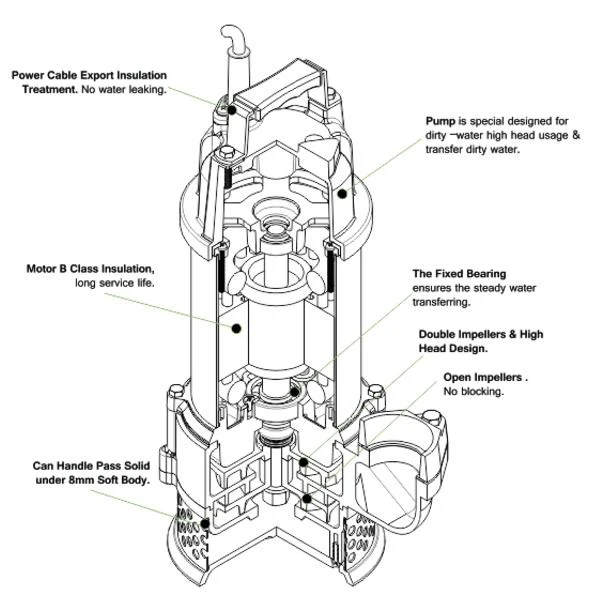

* Double Open Impellers
* Lip Seal and double mechanical seal in oil bath
* Inlet strainer
* Float switch for automatic level control depending on model
* In-winding thermal auto reset overload protector
* Cable Length: 10 meters


Technical Features:

* Maximum Immersion Depth: 6 meters
* Protection Class: IP68
* pH: 6 to 8
* Liquid Temperature: 0-40 degrees
* Weight: 17kg


Applications:

* Pumping clean and dirty water
* Water transfer (high head applications)
* Driplines



Dimensions:

2 Year Warranty




    $227.37

    Original: $649.62

    -65%
    TREVOLI BAH-750A Submersible Pump—

    $649.62

    $227.37
    Product image 1
    Product image 2
    Product image 3
    Product image 4

    Description

    BAH-750A Submersible Pump

    The Trevoli BAH is a heavy duty, cast iron/stainless steel submersible pump ideal for high head water transfer, pumping clean and dirty water. Robust, reliable and high quality.

    Specifications:

    * 230 Volts
    * Single Phase
    * 0.75kW/1.0HP
    * Max Flow Rate: 220LPM
    * Max Head: 25m
    * Comes with Float Switch
    * Outlet Size: 50mm
    * Particle Size:  8mm

    Features:

    * Double Open Impellers
    * Lip Seal and double mechanical seal in oil bath
    * Inlet strainer
    * Float switch for automatic level control depending on model
    * In-winding thermal auto reset overload protector
    * Cable Length: 10 meters


    Technical Features:

    * Maximum Immersion Depth: 6 meters
    * Protection Class: IP68
    * pH: 6 to 8
    * Liquid Temperature: 0-40 degrees
    * Weight: 17kg


    Applications:

    * Pumping clean and dirty water
    * Water transfer (high head applications)
    * Driplines



    Dimensions:


    BAH Series brochure

    2 Year Warranty
