Inline Filter Disc

FDT

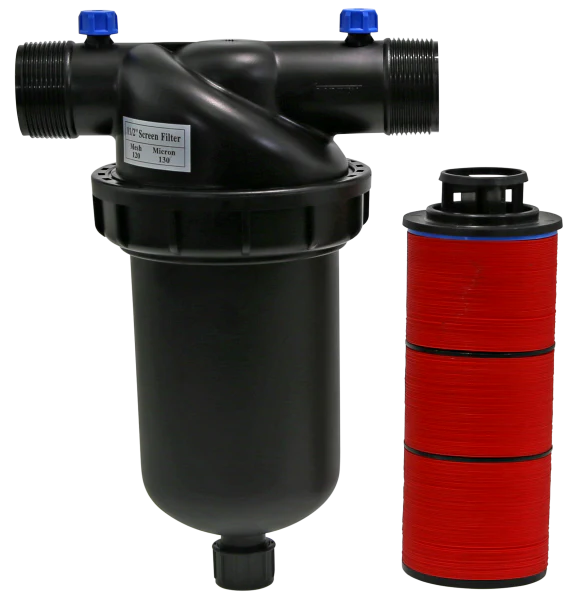

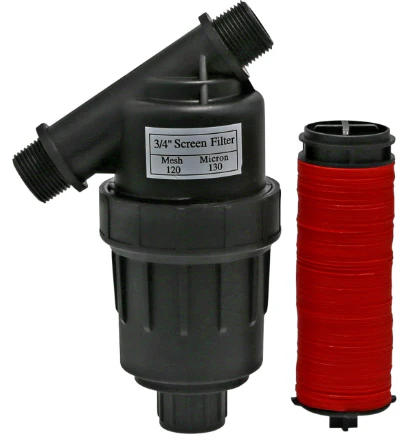

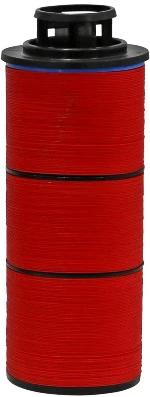

In-line filters with a disc strainer are designed to reduce containments in water. Housings are made from robust plastic with heavy duty lock ring for simple cartridge release and servicing without requiring tools. The 1 1/2” and 2” housings have two 1/4” male ports and all models have 3/4” male bottom port. The Disc filter uses plastic discs with fine groves, when the cartridge is removed, the discs come apart to dislodge sediment and be cleaned.

Specifications:

* 130 Micron
* Filter Element: Disc Type

	Model	Ports	Pressure	Max Flow	Filter Area	Design
20mm (3/4 inch) Inlet/Outlet-Angled	FDT120‑034	3/4"	10 Bar	100 LPM	90cm2	Angled
25mm (1 inch) Inlet/Outlet-Angled	FDT120‑100	1"	10 Bar	115 LPM	90cm2	Angled
40mm (1 1/2 inch) Inlet/Outlet-Straight	FDT120‑100	1 1/2"	8 Bar	250 LPM	246cm2	Straight
50mm (2 inch) Inlet/Outlet - Straight	FDT120‑200	2"	8 Bar	366 LPM	246cm2	Straight
50mm (2 inch) Inlet/Outlet - Angled	FDY120‑200	2"	6 Bar	583 LPM	763cm2	Angled

Also known as part numbers:

715-FDT120-034
715-FDT120-100
715-FDT120-112
715-FDT120-200
715-FDYB120-200
