100L Trevoli Pressure Tank

Trevoli pressure tanks reduce the number of starts your pump makes which increases its life. The PT series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound. Trevoli pressure tanks are made with a stainless steel system connection and are finished with an appliance quality paint finish especially suited for outdoor installations. Trevoli pressure tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

(Available in Vertical model only)

Specifications:

*Size: 100L
*25mm Thread outlet (Elbow)
*Drawdown: 36.3L
*Dimensions: 99.5cm x 38cm
*Weight: 15.5kg
*Max temperature: 100°
*Max Working Pressure: 10 Bar

Applications:

Pressure tanks are ideally suited for:
*Booster systems
*Shallow jet pumps
*Centrifugal pump configurations

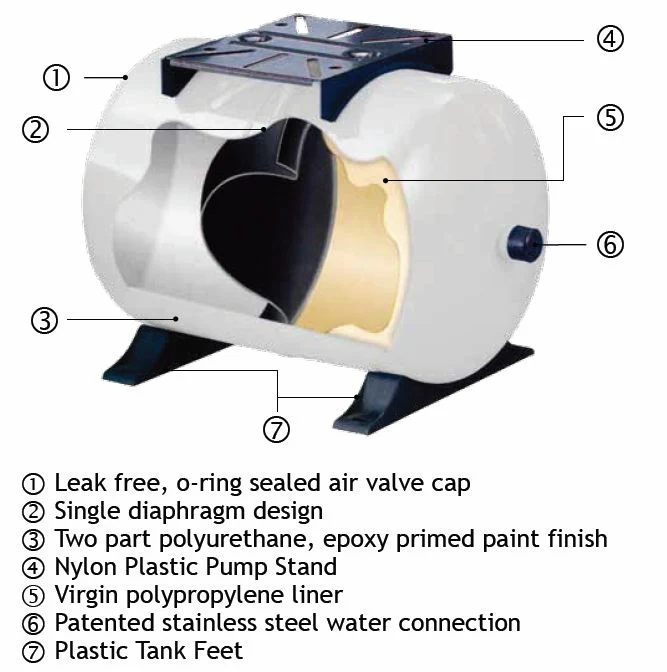

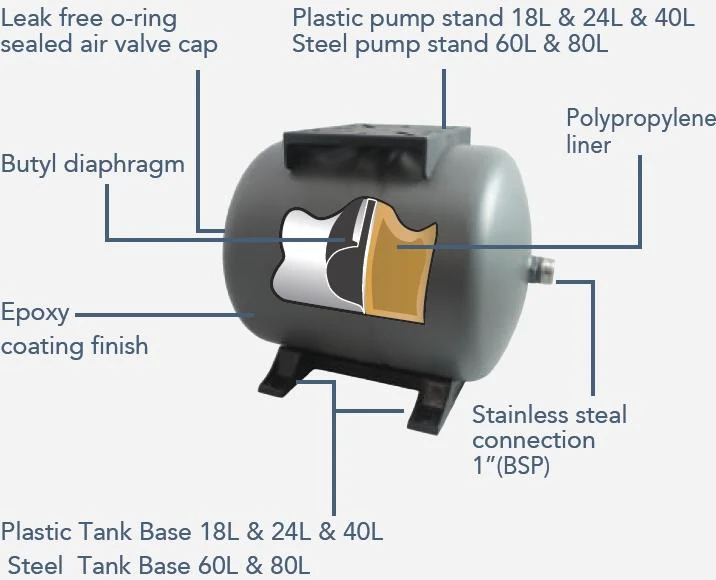

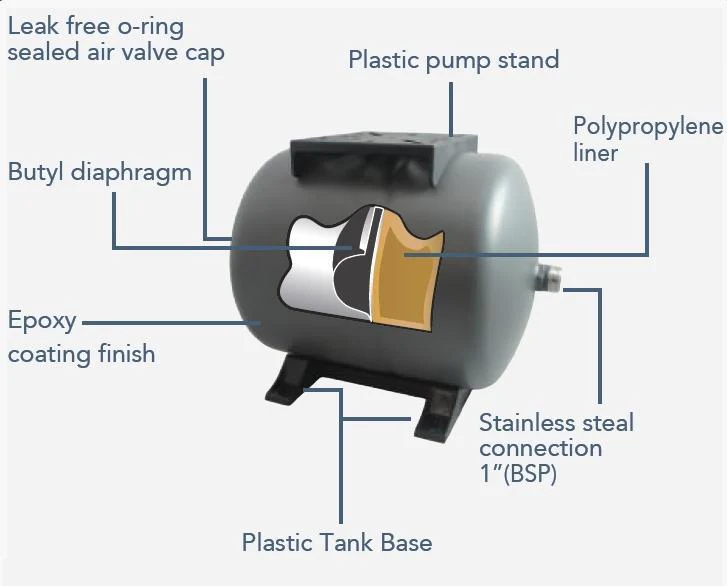

Features:

*Stainless Steel Water Connection Corrosion Resistant For Longer Life
*Controlled Action Diaphragm Longer Life
*Brass Air Stem With Sealing Cap Eliminates Air Leaks, Longer Life,
*No Regular Air Checks Required
*Appliance Quality Paint Finish Looks Better, Longer Life.
*Food Grade FDA Approved High-Grade Butyl Membrane
*Suitable For Drinking Water, Longer Life, Bacteria Resistant
*Condensation Reducing Design Reduces Corrosion, Increases Life

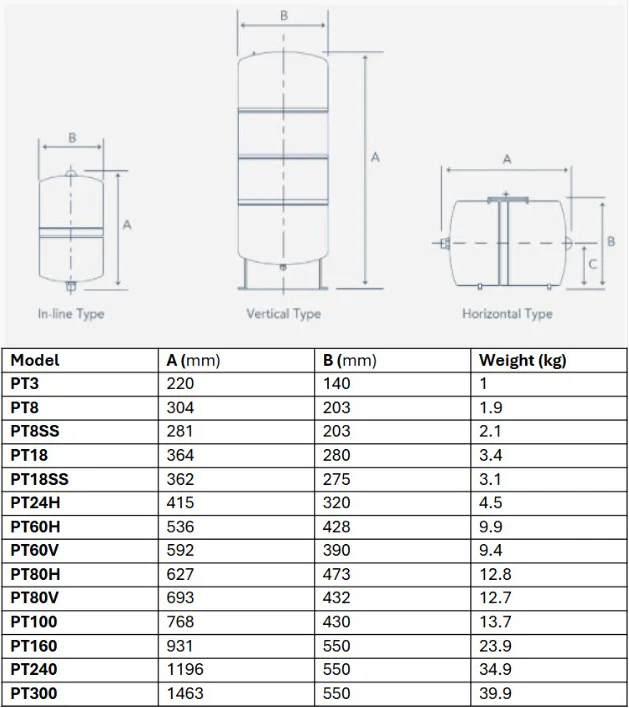

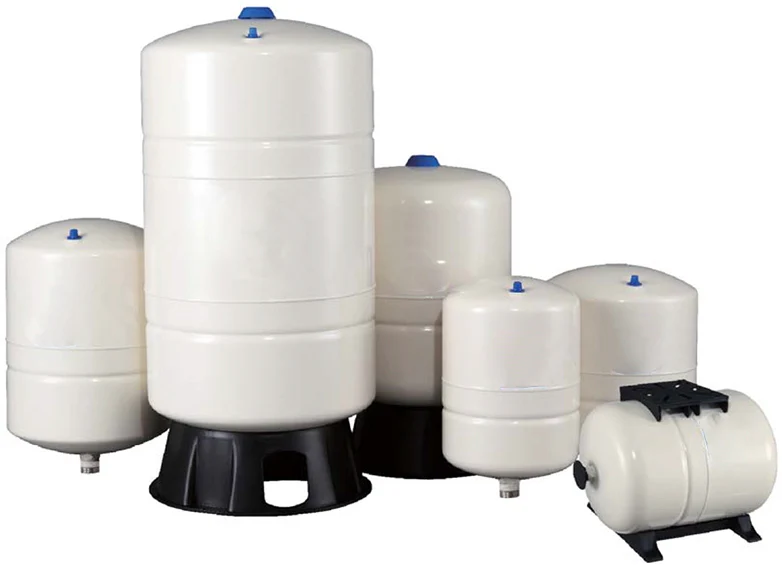

MODEL	A (mm)	B (mm)	C (mm)	WEIGHT (kg)	SHIPPING VOLUME
IN-LINE TYPE WITHOUT BASE

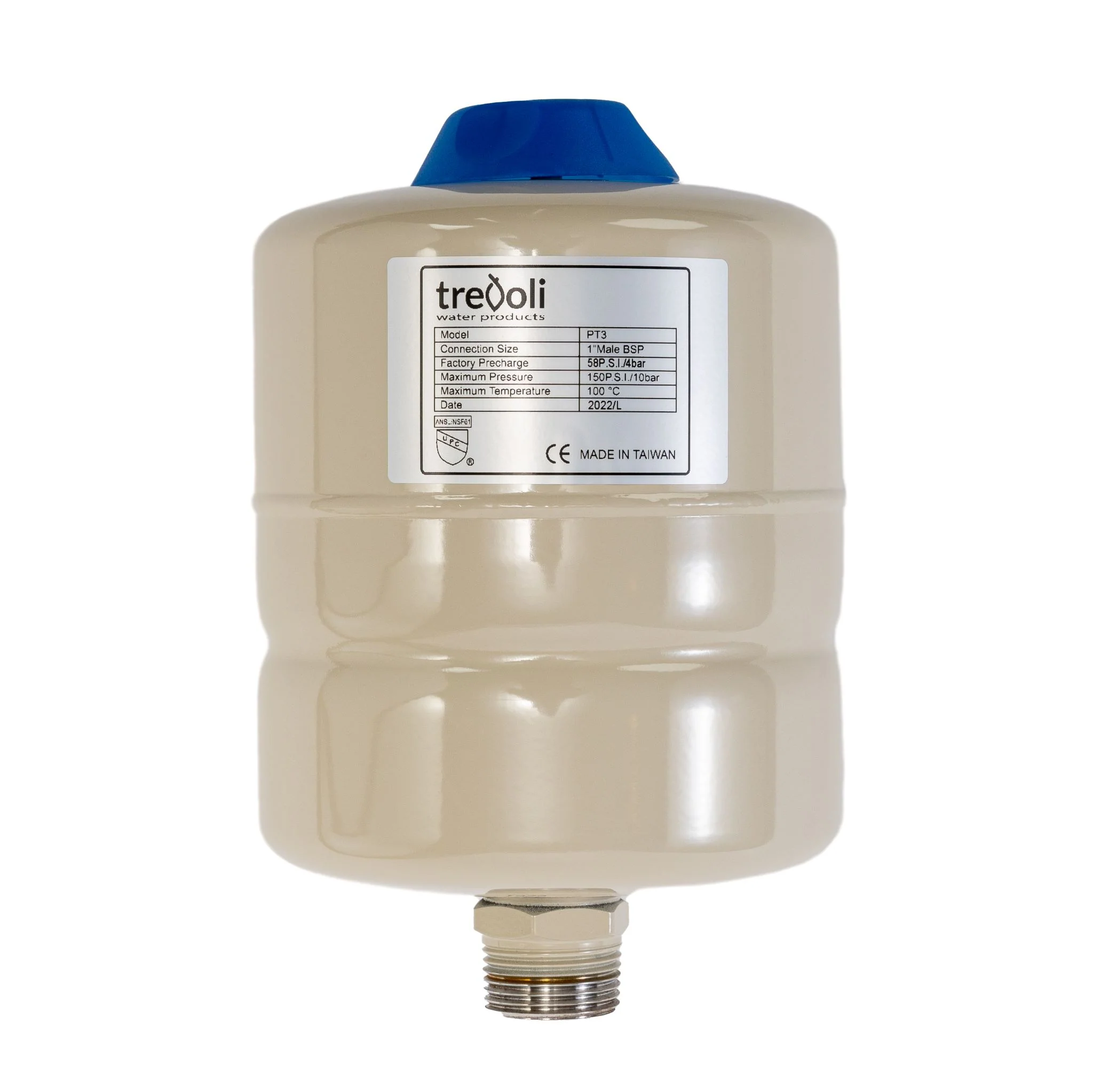

PT3	220	140	-	1.5	0.007

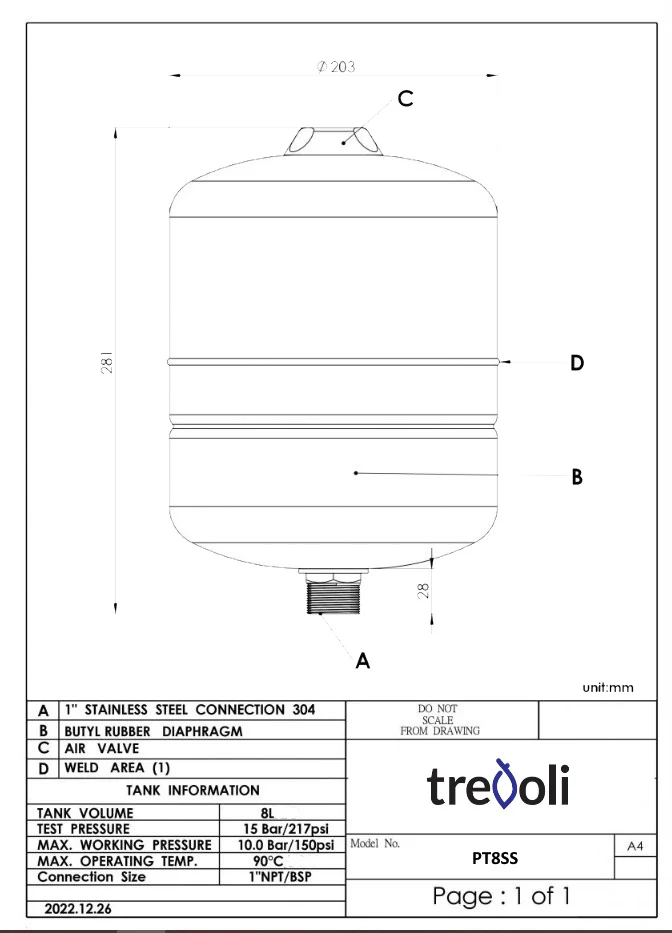

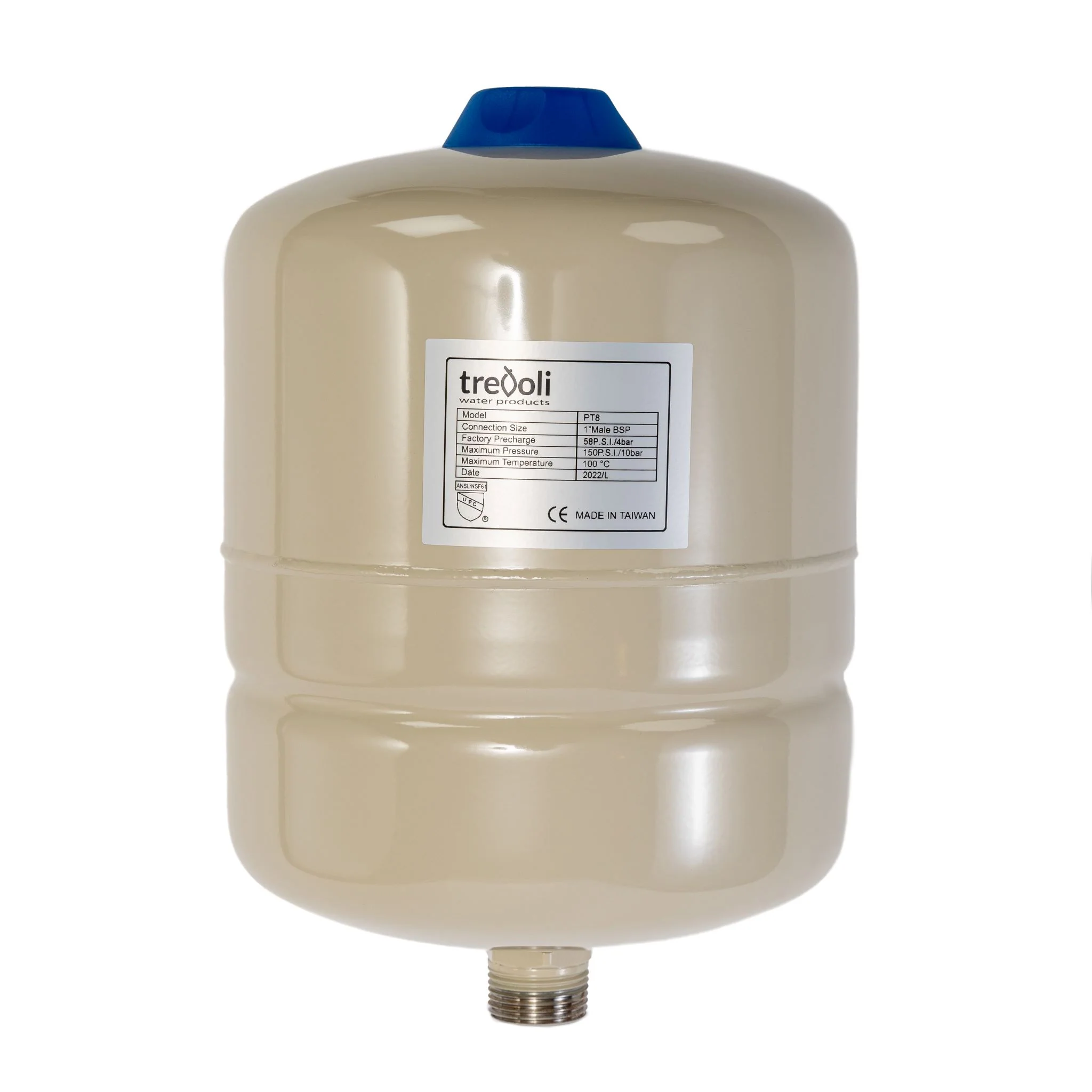

PT8	203	304	-	2.5	0.015
PT12	385	230	-	3.2	0.021
PT18	364	280	-	3.7	0.032
PT24	415	290	-	4.6	0.039
PT40	565	290	-	6.4	0.051
VERTICAL TYPLE WITH BASE
PT60	592	390	-	9.7	0.108
PT80	693	432	-	13.0	0.133
PT100	765	430	-	15.5	0.170
PT130	785	550	-	22.0	0.238
PT160	931	550	-	25.5	0.289
PT240	1196	550	-	36.5	0.371
PT300	1463	550	-	46.8	0.462
HORIZONTAL TYPE WITH BASE
PT18H	309	280	-	5.0	0.037
PT24H	326	290	-	6.0	0.044
PT40H	550	320	-	7.8	0.063
PT60H	428	390	-	11.7	0.097
PT80H	469	432	-	15.0	0.133

5 YEAR TANK REPLACEMENT GUARANTEE
