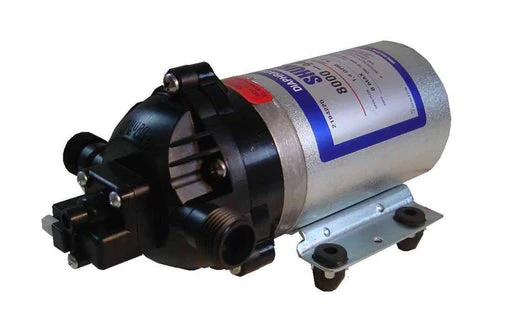

Shurflo 8000 Series- 12v Pressure Pump

The Shurflo 8000 Series diaphragm pump is Shurflo’s most widely used agriculture pump, Viton valve material assures maximum chemical resistance. The unique conical valve design delivers high flow rates at maximum discharge pressures making the 8000 series the pump of choice for sprayers used on the farm or around the yard. These pumps deliver up to 6.8l/m providing maximum performance in a wide range of general agriculture and spot spraying applications.

Specifications:

Model	Volts	Max Flow	Max PSI/Bar	Port Size	Amps
235‑8000‑543‑136	12DC	6.8 Lpm	60/4.1	1/2"	7.3
235‑8000‑547‑189	12DC	6.8 Lpm	100/6.9	1/2"	8.7

235‑8000‑543‑136

PSI	BAR	LPM	Amps 12v
20	1.4	4.7	5.0
40	2.8	4.3	6.2
50	3.4	4.1	6.8
60	4.1	3.9	7.3

235‑8000‑547‑189

PSI	BAR	LPM	Amps 12v
20	1.4	5.5	4.2
40	2.8	5.0	5.5
50	3.4	4.6	6.5
60	4.1	3.6	8.7

Features:

* Self-Priming up to 2.4m.
* Chemical resistant materials.
* Designed for heavy duty spraying.
* Can run dry without damage.
* Built in check valve.
* Built in pressure switch for automatic demand.
* DC

1 Year Warranty

Please contact us regarding product as we don't always carry this item in stock
