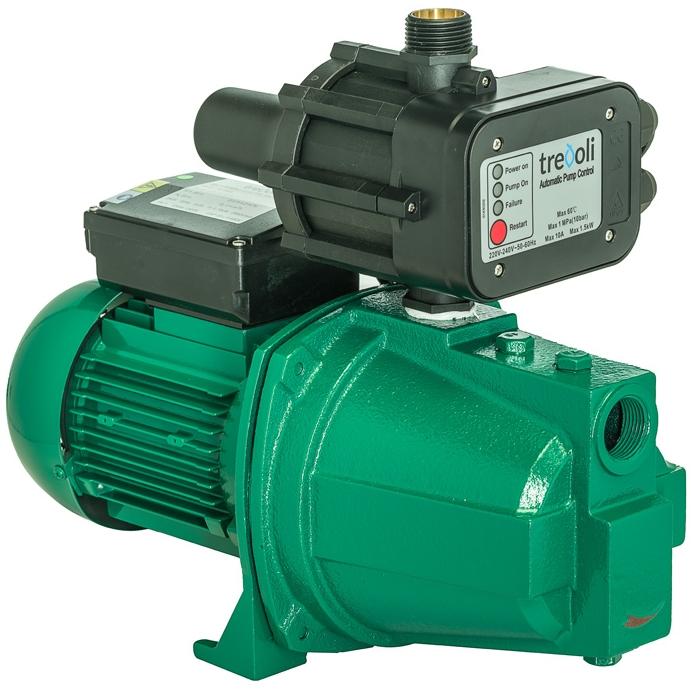

TREVOLI JET100E - Cast Iron Jet Pump 1 HP

This pump is ideal for and farm irrigation, providing mains pressure for a medium to large single or multi-level home supporting up to 5 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.
For farm or stock applications this pumps works best with a mechanical pressure switch and a pressure tank.

Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.

Explanations of Controller Options

Specifications:

*Power -750W - 1 Horsepower
*Single phase with standard NZ 3 pin plug
*Max Flow rate: 70 Liters per minute
*Max Pressure: 66 psi
*Max suction lift: 8 metres
*Max discharge head: 47 metres
*Inlet/Outlet sizes: 1 inch BSP (same as 25mm)
*Built in thermal overload protection
*Insulation class B IP55 Protection
*Rated for Continuous duty
*Liquid temperature range: 5 - 60 deg C
*Max operating pressure: 6 bar

Applications:

* Water supply for large homes
* General water transfer systems and Irrigation
* Domestic Household Pumps

Features:

* Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
* Self Priming
* Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
* Operates constantly from low flow to full flow
* Stops automatically when the last tap is turned off
* Run Dry Protection
* Stainless steel impeller
* Stainless steel motor shaft
* Strong cast iron body
* Built in thermal overload protection

Supports 5 taps running at once (Based on 10 Litres per minute)

2 Year Warranty

Jet Series Brochure
