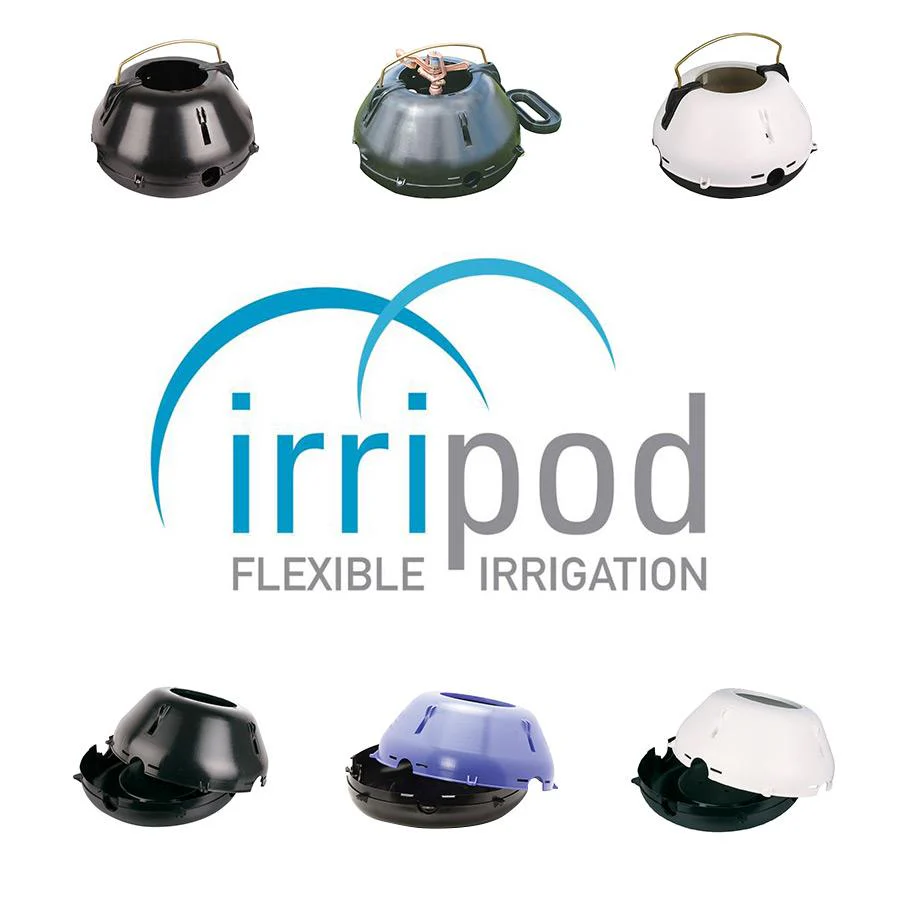

Hansen Irripod Effluent Packs

System
Code & Description

EFFLUENTSYS

Effluent System Part A,B,C,D

Effluent System Set contains:

1 x Part A - 90mm Adaptor Set

1 x Part B - Sub Main Set

1 x Part C - Pod Hydrants

3 x Part D - Pod Sprinkler Lines

Kits

Code & Description

EFFLUENT-A

Effluent 90mm Adaptor

Irripod Effluent 90mm Adaptor Set is used to attach a 90mm Effluent Pipeline to the

45mm Sub Main Set (Part B)

Contains:

1 x Hansen 80mm Male Camlock Threaded Adaptor

1 x Hansen 100mm Female Elbow

1 x Hansen 100 x 50mm Reducing Bush

1 x Hansen 100 x 80mm Reducing Bush

2 x Hansen 50mm Hex Nipples

1 x Hansen 50mm Lilac Ball Valve

1 x 50mm Female Camlock PP

2 x 1/2” Thread Tape

Packaging 1 x Box

Code & Description

EFFLUENT-B

Effluent Sub Main Set

Irripod Effluent Sub Main Set is used to attach to the Adaptor Set (Part A)

Contains:

2 x Hansen 45mm Camlock with Lilac Nut

1 x 50mm Female Camlock PP

1 x Hansen 50mm Tow Eye BSPT

1 x Effluent Pipe 45mm x 50m Lilac coded

1 x Yellow Tow Ball

1 x Tow Rope 2 metre spliced ends

2 x 1/2” Thread Tape

Packaging 1 x Box & 1 x Coil of Pipe

Code & Description

EFFLUENT-C

Effluent Pod Hydrants

Irripod Effluent Pod Hydrants are attached to the Effluent Pipe at 20m intervals to

distribute the Effluent to the Pod Sprinkler Lines.

Contains:

3 x Irripod Low Bases

12 x M8 x 25 Stainless Steel Cap Screws

3 x Hansen Manifold Block 50mm 4 Way BSP

6 x Hansen 50mm Hex Nipples

6 x Hansen 45mm Male Straight Coupling with Lilac Nut

6 x Hansen 50mm Lilac Ball Valves BSP

6 x 50mm Male Camlock PP

3 x 1/2” Thread Tape

Packaging 1 x Box

Code & Description

EFFLUENT-D

Effluent Pod Lines

Part D - Pod Sprinkler Lines

Irripod Effluent Pod Sprinkler Lines are attached to the Effluent Pipe at 20m intervals to

distribute the Effluent.

Contains:

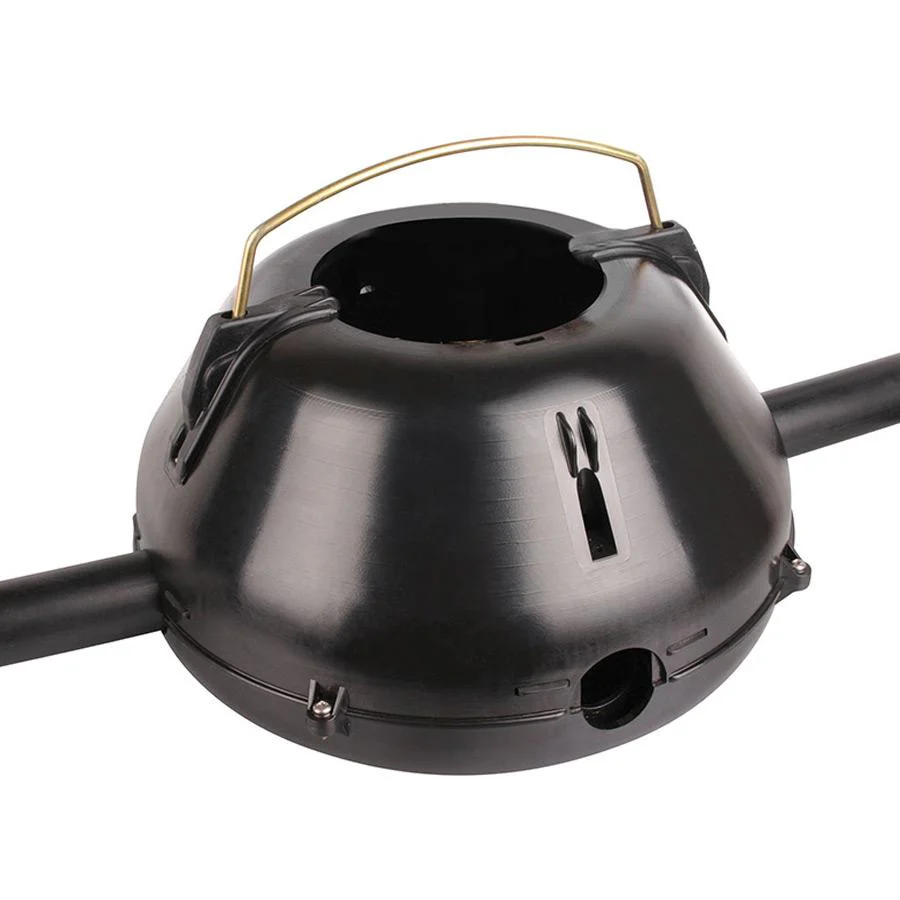

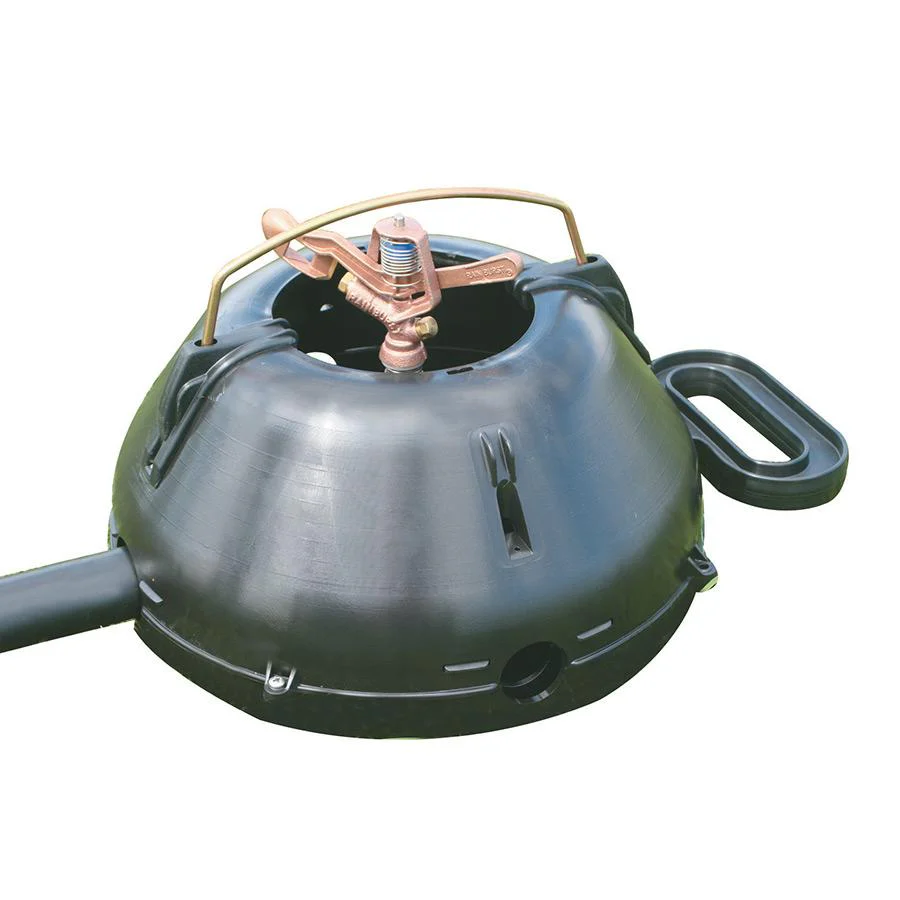

6 x Lilac Pods with Black Bases

6 x 20mm Senninger 4023 Sprinkler

6 x Irripod 45mm LDPE Low Riser 20mm Male BSP Tapping Saddle Tops

6 x Hansen 20mm Sockets

2 x Hansen 45mm Camlock with Lilac Nut

1 x 50mm Female Camlock PP

1 x Hansen 50mm Tow Eye BSPT

1 x Irripod Effluent Pipe 45mm x 120m Lilac coded

1 x Yellow Tow Ball

1 x Tow Rope 2 Metre Spliced Ends

6 x Cross Tee Anchor 40-45mm LDPE

6 x Wire Protectors

12 x Wire Retainer Clips

6 x Tapping Saddle Seals

6 x Irripod Screw Bags

(6 x 10g Pozi Pan Head Self Tapping Stainless Steel Screws)

6 x Irripod U-Bolt Bags

(2 x M8 x 65mm Stainless Steel U Bolts, 4 x M8 Stainless Steel Flanged Nuts)
