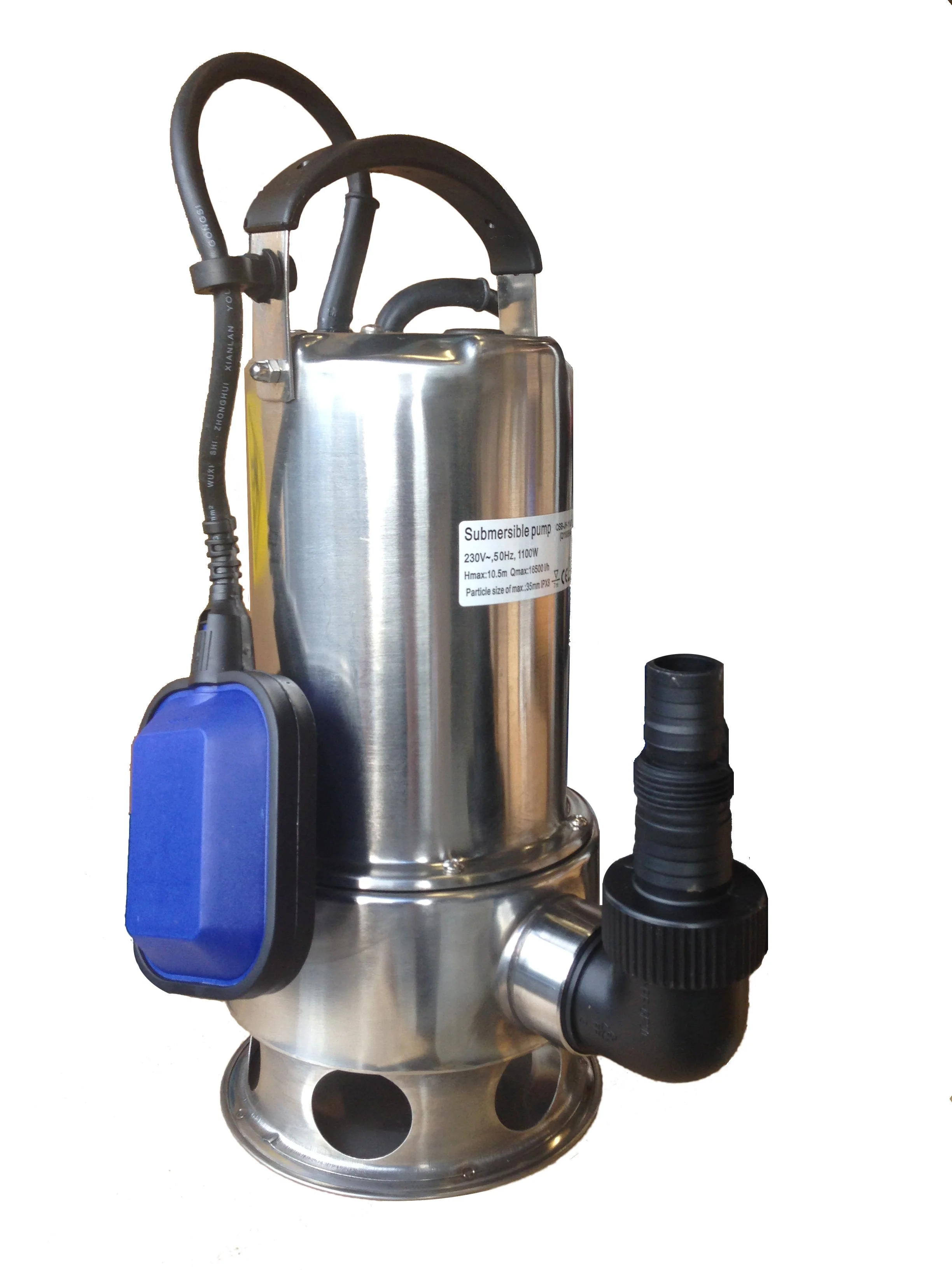

Q1100B - Stainless Steel Submersible Vortex Pump - 1100 Watt

Suited to all de-watering tasks including pumping out sumps, swimming pools, calf milk, flooded areas and drawing water from wells.

Specifications:

*Power: 1100 Watt
*Max Flow rate: 275 Litres per minute
*16500 Litres per hour
*Max delivery height: 10.5 metres
*Max immersion depth: 7 metres
*Foreign body size: Up to 35mm
*Max pressure: .75 bar
*Weight: 7.4 kg
*Dimensions:
*345mm high
*240mm wide (including outlet elbow adaptor)
*Temperature Range: 0-35 degrees

Features:

*Light Weight
*Easy to use
*Float switch for run-dry protection
*10 Metre electrical cord
*1 inch, 1.25 inches, stepped outlet hose fitting for 25mm & 32mm Hose
*Corrosion resistant stainless steel construction - including stainless steel shaft
*The external float lead is adjustable
*Cut in can be approx 350-450 mm and cut off approx 100mm
*500 mm max is needed for float clearance.

The float switch automatically switches on the pump at a water height of approx 53cm and off at approx 15cm. By fixing the float switch cable to the float switch lock, the cut in/out height can be adjusted.

Applications:

*Drainage
*Dirty water
*Calf Milk

Not suitable for ponds, fountains, sewage/effluent or biotreatment systems.

Please Note:

Pump is suitable for intermittent use only.
Pump is not suitable for permanent installation

12 months warranty
