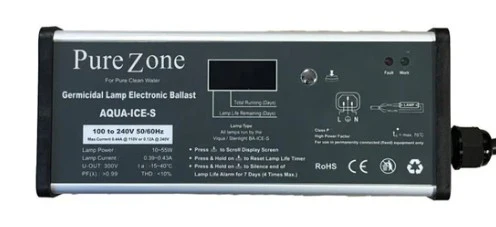

BA-ICE UV Ballast

The BA-ICE UV Ballast is a reliable replacement power supply designed to operate compatible ultraviolet (UV) water sterilisation systems. The ballast regulates the electrical current required to start and run the UV lamp, ensuring consistent performance and effective disinfection of water.

Built for durability and stable output, the BA-ICE ballast helps maintain optimal lamp operation, supporting the UV system in eliminating bacteria, viruses, and other harmful microorganisms from your water supply.

This BA-ICE-S UV Ballast is designed for use with select VIQUA Sterilight Silver Series UV Systems.

BA-ICE-S Specifications:

* Lamp Power: 10-55w
* Lamp Current: 0.39-0.43A
* Staggered Pins

Compatible UV Systems:

VIQUA S1Q UV System
VIQUA S2Q UV System
VIQUA S5Q UV System
VIQUA S8Q UV System
VIQUA S12Q UV System

Compatible UV Lamps:

VIQUA S287RL UV Lamp
VIQUA S330RL UV Lamp
VIQUA S463RL UV Lamp
VIQUA S810RL UV Lamp
VIQUA S36RL UV Lamp

The BA-ICE-CL ballast are mainly used with the VIQUA / Sterilight Cobalt series. The ballast is designed to operate low-pressure high-output (HO).

BA-ICE-CL Specifications:

* Lamp Power: 25-95w
* Lamp Current: 0.75-0.85A
* Staggered Pins

Compatible Systems:

VIQUA VH200
VIQUA VH410
Sterilight SC-200
Sterilight SC-320

Compatible Lamps:

S200RL-HO (VH200)
S410RL-HO (VH410)

Note: This ballast must match the UV system model to ensure correct operation. If you are unsure about compatibility, please contact us before purchasing and we will be happy to assist.
